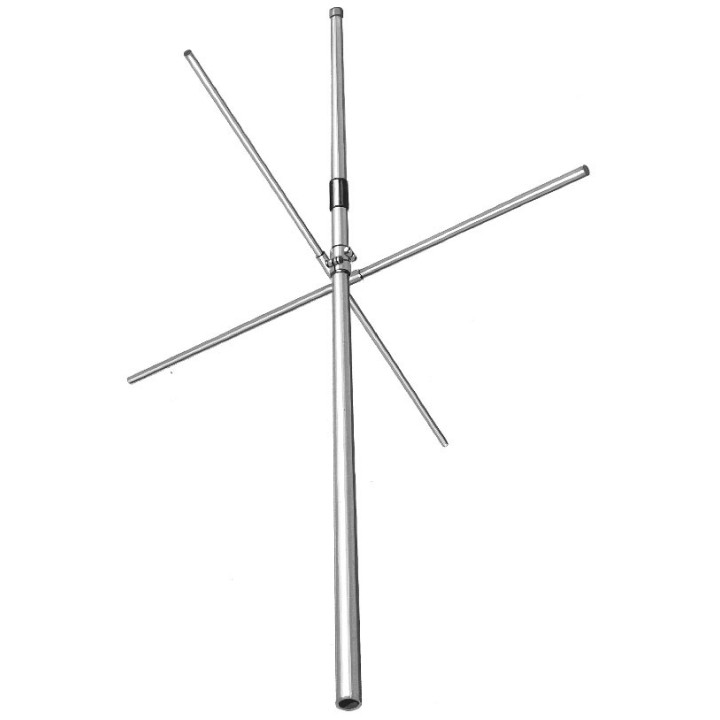

SG217-SF2SNM

SG217-SF2SNM

Sinclair

Ground plane omni, 2.5 dBd, 138-174 MHz, 2.1-2.5% B.W., N(m)

Electrical

  • Average Input Power Max (W): 250
  • Connector: N-Male (N-Female available as SG217-SF2SNF)
  • Frequency Range (MHz): 138 to 174
  • Gain Nominal (dBi): 2.5
  • Lightning Protection: DC ground
  • Pattern: Omni-directional
  • Polarization: vertical

Mechanical

  • Actual Shipping Weight (lbs): 15
  • Base Pipe Diameter: 1.5
  • Base Pipe Material: aluminum
  • Length Height (in): 128
  • Mounting Hardware Included: Clamp135
  • Radiating Element Material: aluminum
  • Shipping Dimensions (in): 73x5x6
  • Width (in): 58

Environmental

  • Bending Moment 100 Mph No Ice: 224
  • Lateral Thrust 100 Mph No Ice: 65
  • Rated Wind Velocity No Ice: 125
  • Temperature Range (°C): -40 to 60

  • Brand

Sinclair SG217-SF2 DS

Download (655.32KB)
