SD312/212DSF2P2SNM

SD312/212DSF2P2SNM

Sinclair

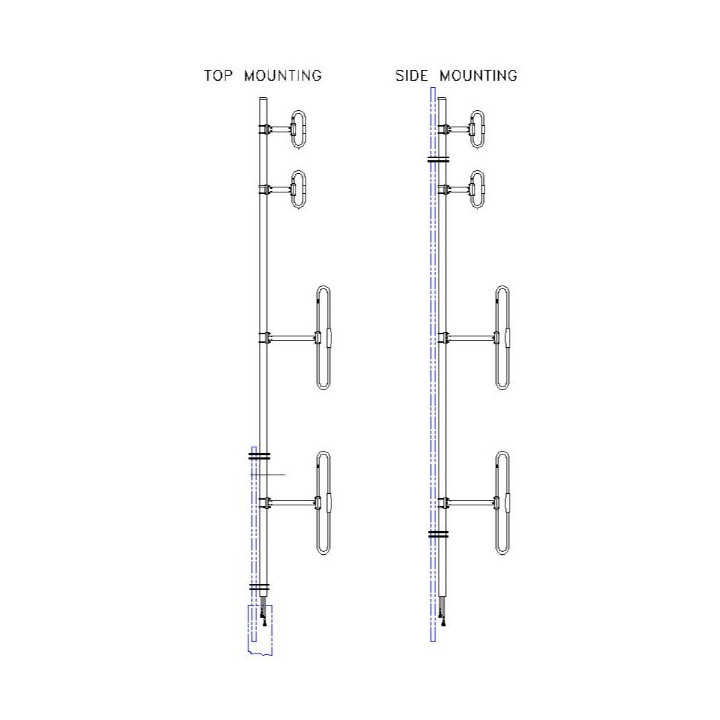

Stacked 2 port UHF/VHF, 2 dipoles, 5.5 dBd, 406-512/ 138-174 MHz

(SD312/212D-SF2P4SNM(D00))

Stacked 2 port UHF/VHF, 2 dipoles, Antenna

  • Frequency Range 1 (F1): 406 to 512 MHz
  • Frequency Range 2 (F2): 138 to 174 MHz
  • Connector: N-Male
  • Gain (nominal): 5.5 dBd
  • VSWR (max): 1.5 : 1
  • Polarization: vertical
  • Impedance: 50 Ω
  • Pattern Offset
  • Horizontal beamwidth (typ): 210 degrees
  • Vertical beamwidth (typ): 34 degrees
  • Average Input Power (max): 150/300 W
  • Lightning protection: DC ground
  • Front-to-back ratio (typ): 8 dB



  • Brand
