Sinclair

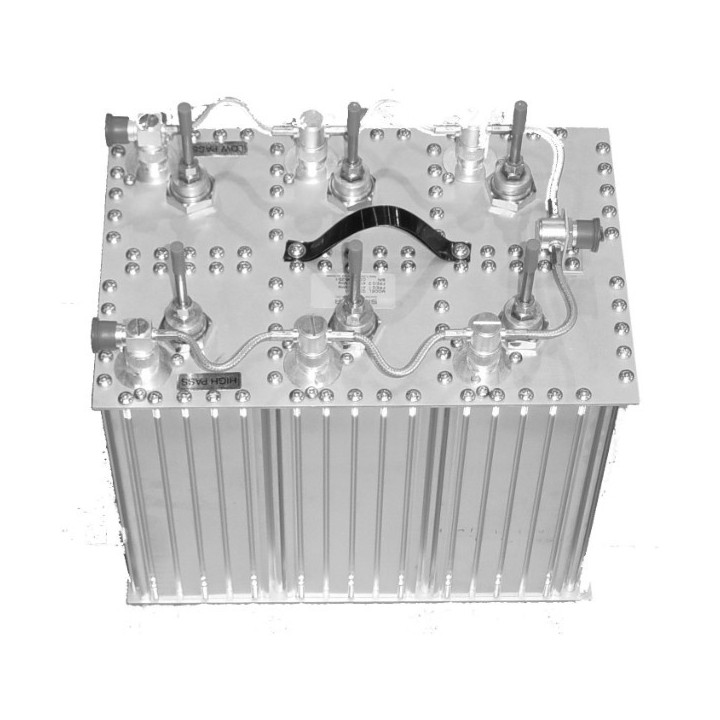

Duplexer, Q-Circuit, Res-Lok, 6 cavity, 450-470 MHz

  • Six cavity Res-Lok duplexer

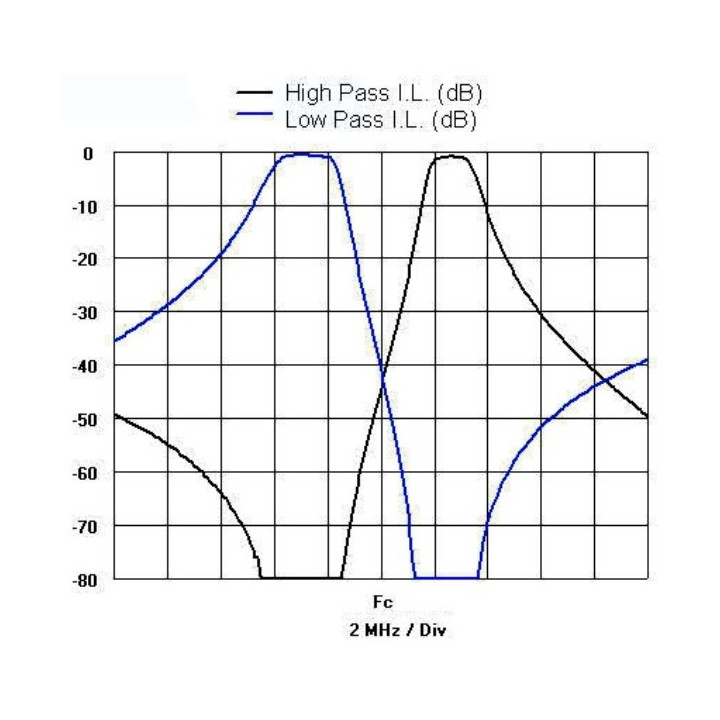

  • Provide 1 MHz passband and reject notch where frequency separation is 5 MHz
  • Typical minimum isolation of 85 dB with maximum insertion loss of 1.3 dB

Duplexer, Q-Circuit, Res-Lok, 6 cavity,

Electrical

  • Frequency Range 450 to 470 MHz
  • Connectors N-Female
  • Input VSWR (max) 1.5 : 1
  • Insertion loss (max) Tx to Ant 1.3 dB
  • Insertion loss (max) Rx to Ant 1.3 dB
  • Impedance 50 Ω
  • Average Input Power (max) 350 W
  • Frequency Separation (min) 5 MHz
  • Isolation (min) 85 dB



Mechanical

  • Width 19 in
  • Depth 11.38 in
  • Length/ Height 8.3 in
  • Finish chromate conversion
  • Weight 23 lbs
  • Mounting configurations 19 inch rack
  • Actual shipping weight 25 lbs
  • Shipping dimensions 11x15x24 in



Environmental

  • Temperature range -40 to 60 °C

  • Brand

SINCLAIR Q3330E-3 Spec Sheet

Download (513.25KB)
