Q2220E

Q2220E

Q2220E

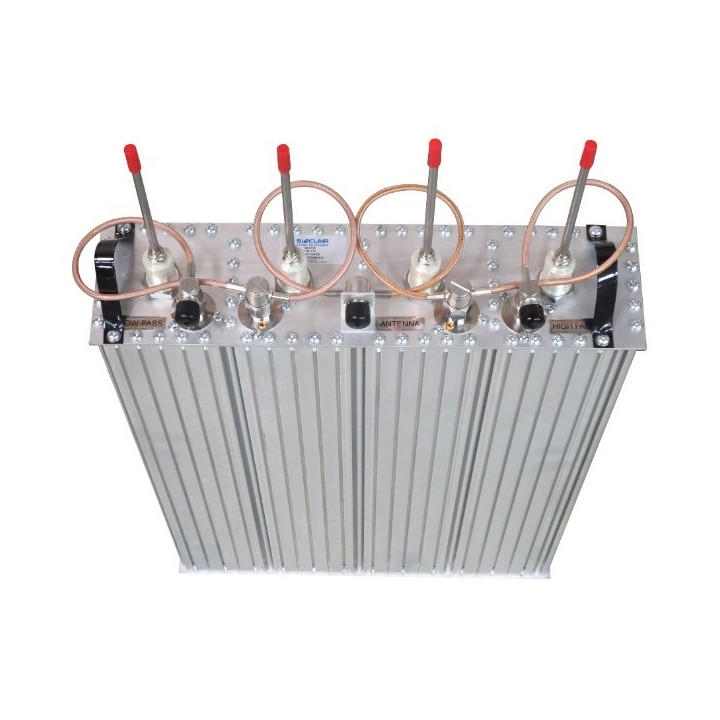

Duplexer, Q-Circuit, Res-Lok, 4 cavity, 138-174 MHz

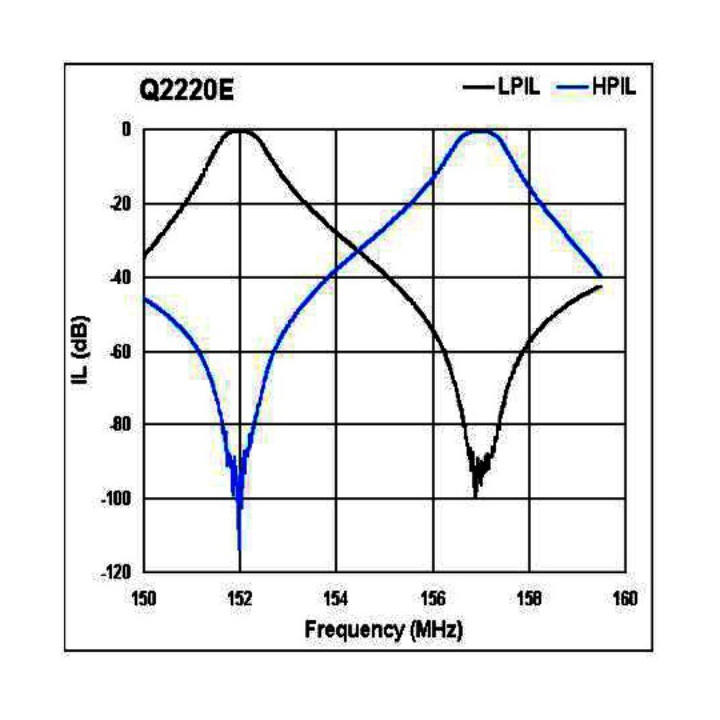

Four cavity duplexer with 70 dB of isolation
Only 1.5 dB insertion loss at 500 KHz separation
Isolation of 80 dB at 3 MHz spacing typical

Duplexer, Q-Circuit, Res-Lok, 4 cavity

Electrical

Frequency Range 138 to 174 MHz
Number of Cavities - Tx Side 2
Number of Cavities - Rx Side 2
Input Connectors N-Female
Output Connectors N-Female
Input VSWR (max) 1.5 : 1
Insertion loss (max) Tx to Ant 1.5 dB
Impedance 50 Ω
Average Input Power (max) 350 W
Frequency Separation (min) 0.5 MHz
Isolation (min) 70 dB

Mechanical

Width 19 in
Depth 30.3 in
Length/ Height 4.17 in
Finish chromate conversion
Weight 28 lbs
Mounting configurations 19 inch rack
Actual shipping weight 33 lbs
Shipping dimensions 19.25x7x30.5 in

Environmental

Temperature range -40 to 60 °C

Brand

SINCLAIR Q2220E Spec Sheet

Download (741.83KB)
