MR256N-2

MR256N-2

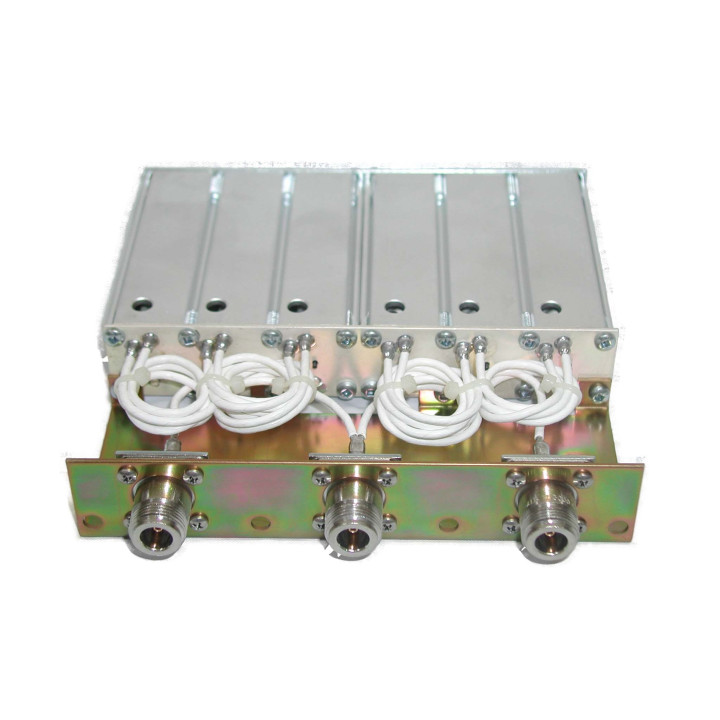

Mobile 6 Cavity Duplexer, 148-160 MHz N-fem

Six highly stable temperature compensated helical resonators
Enclosure is made of lightweight but rugged aluminum extrusion
50 Watts power handling with 80 dB Tx to Rx isolation
Minimum Tx-Rx spacing of 4.5 MHz, maximum of 10 MHz

MR256 Series Specs

Electrical

Frequency Range 136 to 174 MHz
Number of Cavities - Tx Side 3
Number of Cavities - Rx Side 3
Connectors Various
Input VSWR (max) 1.5 : 1
Insertion loss (max) 1.5 dB
Impedance 50 Ω
Isolation - Tx noise suppression at Rx (min) 80 dB
Isolation - Rx carrier suppression at Tx (min) 80 dB
Average Input Power (max) 50 W
Frequency separation range 4.5 to 10 MHz

Mechanical

Width 6.26 in
Depth 7 in
Length/ Height 1.31 in
Finish chemical conversion
Weight 2 lbs
Actual shipping weight 2.5 lbs
Shipping dimensions 13x9x3 in

Environmental

Temperature range -30 to +60 °C

Brand

SINCLAIR MR256 Series Spec Sheet

Download (474.4KB)
