Sinclair

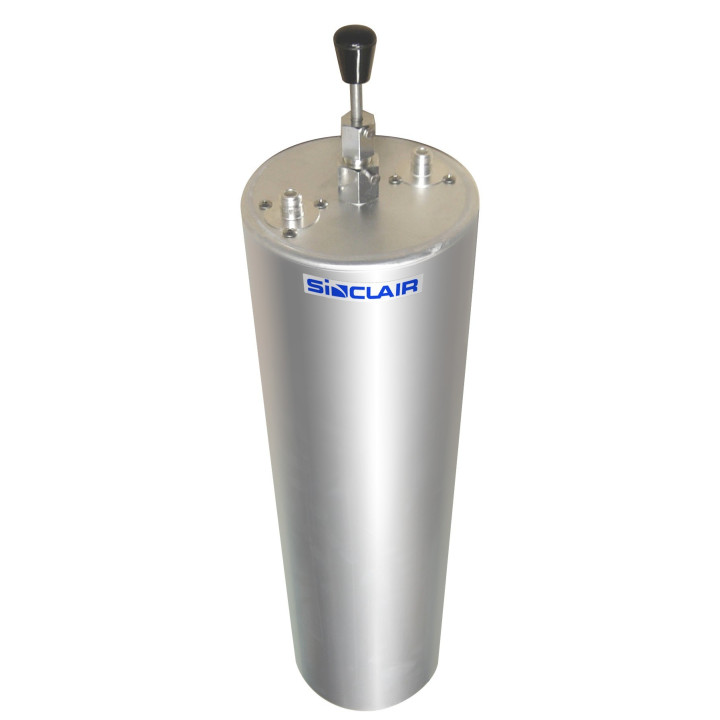

Cavity filter, bandpass, high Q 7", 108-138 MHz

  • Aluminum cylinder with brass and copper coaxial inner conductor
  • Silver plating and chromate conversion coating limit corrosion and enhance performance
  • Temperature compensated for extremely low frequency drift

Electrical

  • Frequency Range 132 to 150 MHz
  • Input Connectors N-Female
  • Output Connectors N-Female
  • Insertion loss (max) Tx to Ant 3 dB
  • Insertion loss (min) 0.5 dB
  • Impedance 50 Ω
  • Average Input Power (max) 90 to 400 W



Mechanical

  • Width 7 in
  • Depth 7 in
  • Length/ Height 32.5 in
  • Weight 10 lbs
  • Actual shipping weight 15 lbs
  • Shipping dimensions 9x9x35 in



Environmental

  • Temperature range -40 to 60 °C

  • Brand
