Comprod

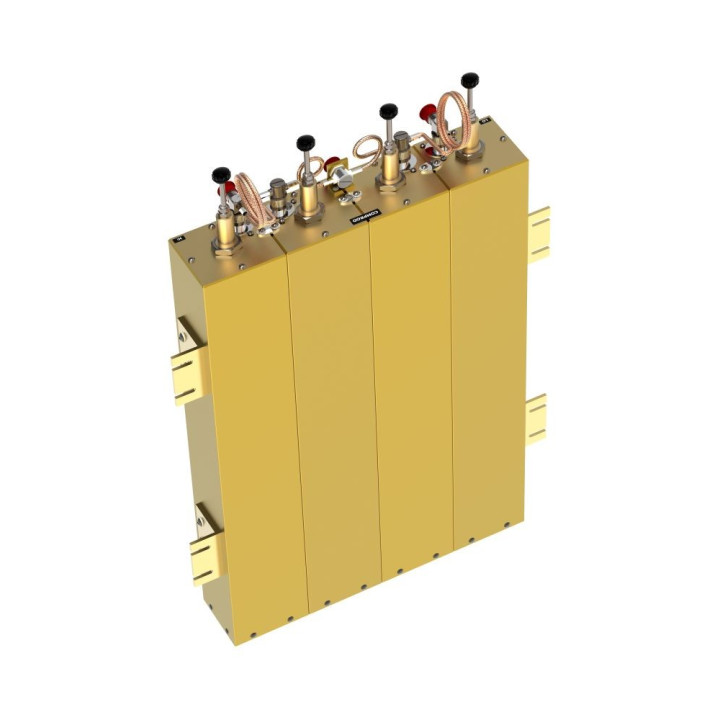

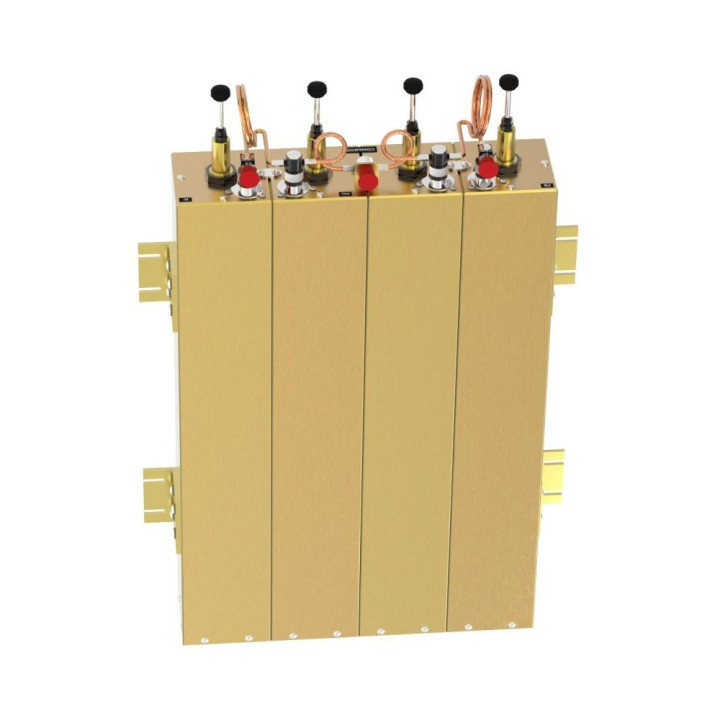

Comprod VHF Duplexer 4X4' Cans 19' Rack Mt

  • (4) 4-inch Cavity Duplexer
  • Frequency Range: 138-174 MHz
  • Ideal for high power, close frequency separation installations

(4) 4-inch Cavity Duplexer

Frequency Range: 138-174 MHz

Ideal for high power, close frequency separation installations. Designed for combining two frequencies that require extra isolation. Can also be used as efficient pre-selectors. Temperature compensated to ensure frequency stability. High attenuation to minimize desense and interference from adjacent systems. Adjustable loops.

  • Frequency Range: 138-174 MHz
  • Frequency Spacing Min.: 0.5 MHz
  • Cavity Diameter: (4) – 4" Square
  • Continuous Power Input: 350 Watts
  • Connectors: N Female
  • Insertion Loss 1.5 dB
  • Channel Isolation: 70dB
  • VSWR: 1.2:1
  • Temperature Range: – 40 to +60 ºC
  • Max Length: in (H x W x D)  31 x 19 x 4
  • Weight: lbs (kg) 30 (13.6)
  • Mounting: 19" Rack Mount

  • Brand

COMPROD 66-nn-44 Spec Sht

Download (363.04KB)
