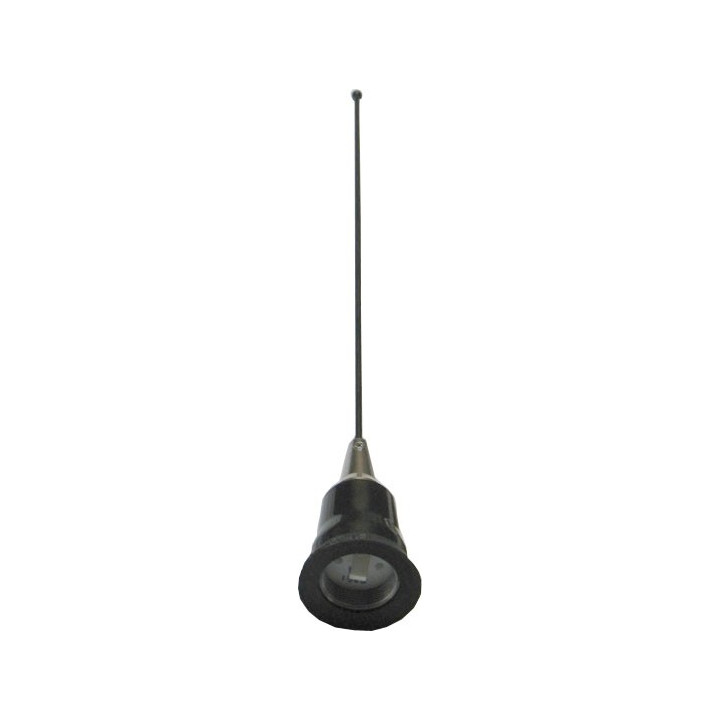

SVB-1383

SVB-1383

Sinclair

Mobile Omni, 3 dBd, 5/8 wave, 138-174 MHz

  • Weather proof base with integral sealing gasket
  • Stainless steel ferrule for corrosion resistance
  • End fed 5/8 wave
  • 3.5% bandwidth with 5 MHz typical bandwidth

Electrical

  • Frequency Range: 138 to 174 MHz
  • Bandwidth: 5 MHz
  • % Bandwidth: 3.5 %
  • Gain (nominal): 3 dBd
  • Input VSWR (max): 1.5 : 1
  • Polarization: vertical
  • Impedance: 50 Ω
  • Pattern: Omni-directional
  • Average Input Power (max): 100 W

Mechanical

  • Length/ Height: 58 in
  • Mounting configurations: upright

Environmental

  • Temperature range: -40 to 60 °C

  • Brand
