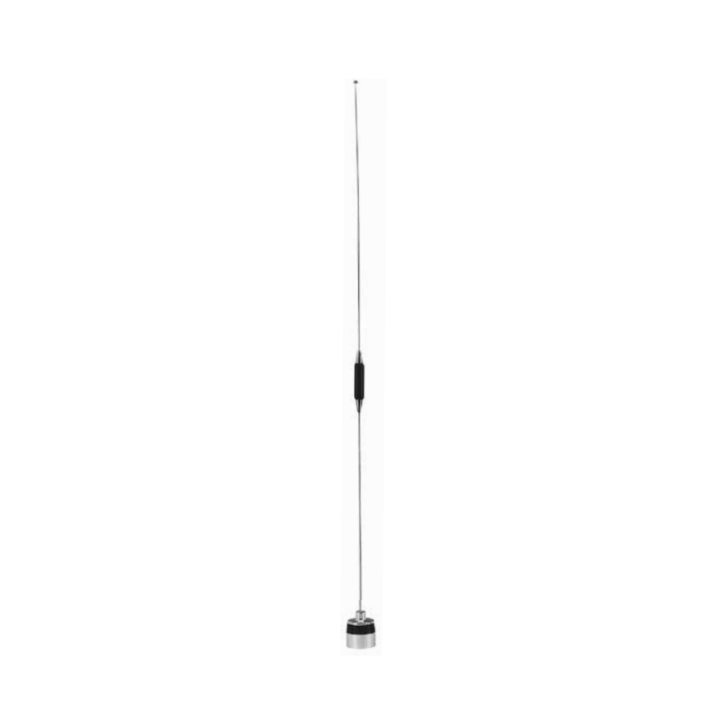

MUF4505NGP

MUF4505NGP

PCTEL

450-470Mhz NGP, 5dB, Collinear / Closed coil / No Ground Plane

  • Low-profile, double-sealed housing for maximum weatherproofing
  • Plated fittings for superior performance and durability in the toughest environments
  • Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts

MUF4505NGP

  • Freq: 450-470 MHz
  • Type: Collinear - 5/8 wave over a 1/4 wave *No Ground Plane Required
  • Gain:5 dB
  • VSWR: < 1.5:1
  • Power: 200 watts
  • Impedance: 50 ohms
  • Length: 32" on lowest frequency
  • Mount:  Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts

  • Brand

PCTel MUF Series Data Sheet

Download (132.33KB)
